EXCAVATORS
Save Up to $12,000 or Pay 0% A.P.R. For Up to 36 Months With 0% Down on KX and U Series!*
Expires 8/31/2026
U27-4
COMPACT EXCAVATORS
MSRP AS LOW AS
$45,713.00

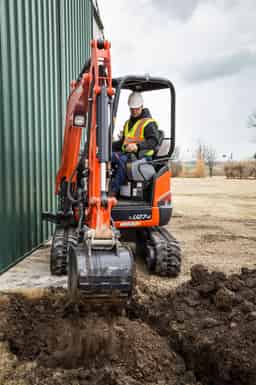

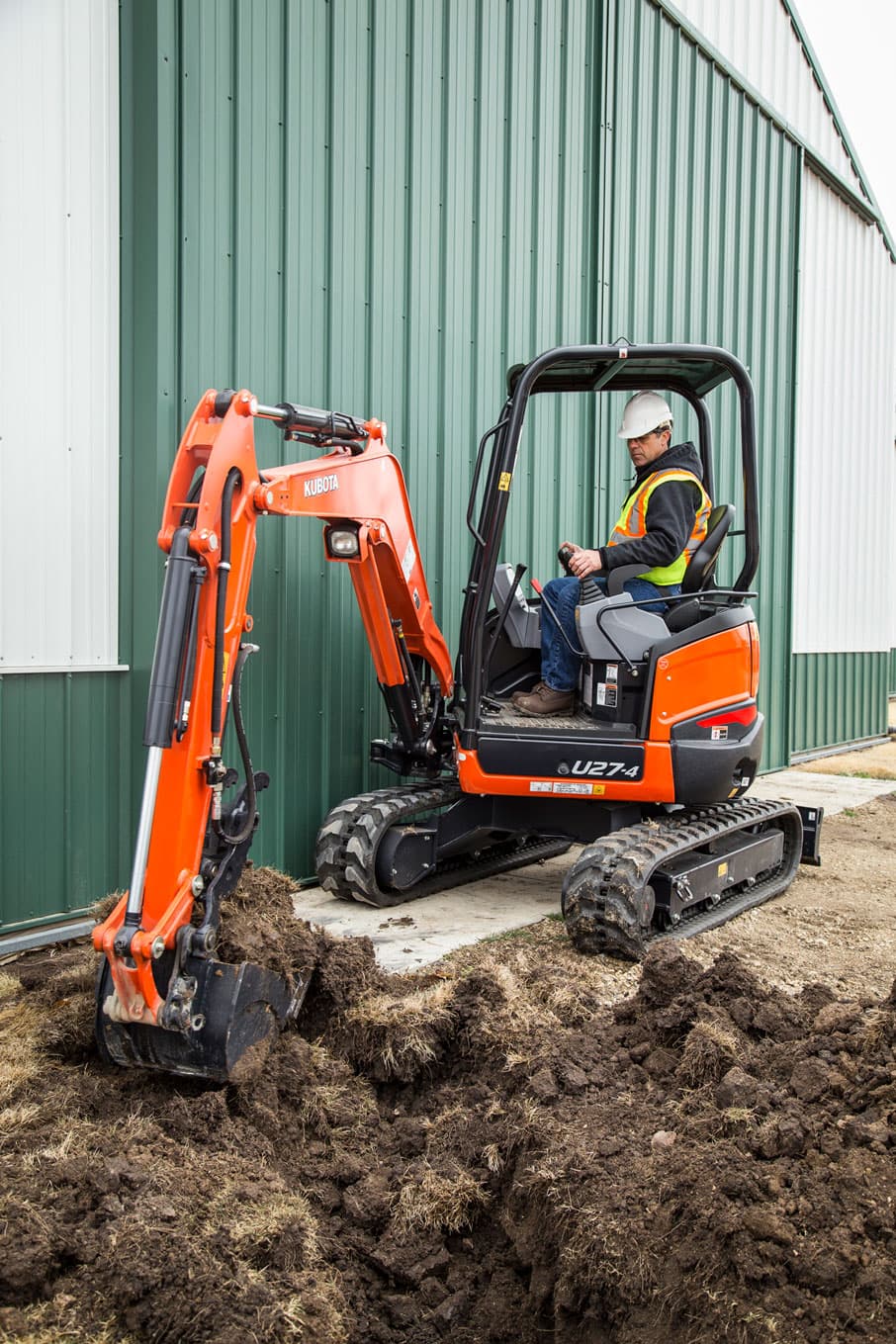

Versatility comes naturally to the Kubota U27-4, designed to assist you in a wide variety of tasks on the jobsite. With front pin bushing and a centralized swivel bearing lubrication, you’ll operate the excavator’s arm with ease and use its advanced hydraulics. Ergonomic placement of controls keeps things simple for the operator and with 20.8 horsepower available, you’re going to be taking on plenty of jobs behind the controls. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Special Offers
CONSTRUCTION
$0 Down, 0% A.P.R. for up to 36 Months or Save up to $12,000 on Construction Equipment!
Expires 8/31/2026
U27-4
HP
MSRP AS LOW AS
$45,713.00
Specifications
Arm Breakout Force, lbs (kgf)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
Blade Height, in (mm)
Blade Width, ft (mm)
Bucket Breakout Force, lbs (kgf)
Crawler Length, ft (mm)
Displacement (cu. in.)
Engine Model
Fuel Reservoir, gal (l)
Ground Contact Pressure psi, kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, gal (l)
Min. Ground Clearance, in (mm)
Operating Weight, lbs (kg)
Overall Height, ft (mm)
Overall Length, ft (mm)
Overall Width, ft (mm)
Pump Capacity, GPM (LPM)
Traveling Speed: High, mph (kph)
Traveling Speed: Low, mph (kph)
Arm Breakout Force, lbs (kgf)
2777 (1990)
Auxiliary Hydraulics Flow Rate, GPM (LPM)
12.7
Blade Height, in (mm)
11.8in
Blade Width, ft (mm)
59.1in
Bucket Breakout Force, lbs (kgf)
7014
Crawler Length, ft (mm)
6ft 6.3in (1990)
Displacement (cu. in.)
68.5
Engine Model
Kubota D1105-BH
Fuel Reservoir, gal (l)
8.7
Ground Contact Pressure psi, kgf (cm2)
3.321
Horsepower (gross)
20.8
Hydraulic Oil Reservoir / System, gal (l)
5.8 / 9.7
Min. Ground Clearance, in (mm)
12.1in
Operating Weight, lbs (kg)
5625 (2550)
Overall Height, ft (mm)
7ft 11in
Overall Length, ft (mm)
13ft 6in
Overall Width, ft (mm)
4ft 11in
Pump Capacity, GPM (LPM)
20.3
Traveling Speed: High, mph (kph)
1.6 2.7
Traveling Speed: Low, mph (kph)
1.6
